Manage Focus Area Detections
 |
This functionality may not be regulatory cleared, released or licensed for sale in all markets. |
When the focus area detection is completed, double-click an image with a focus area detection icon.

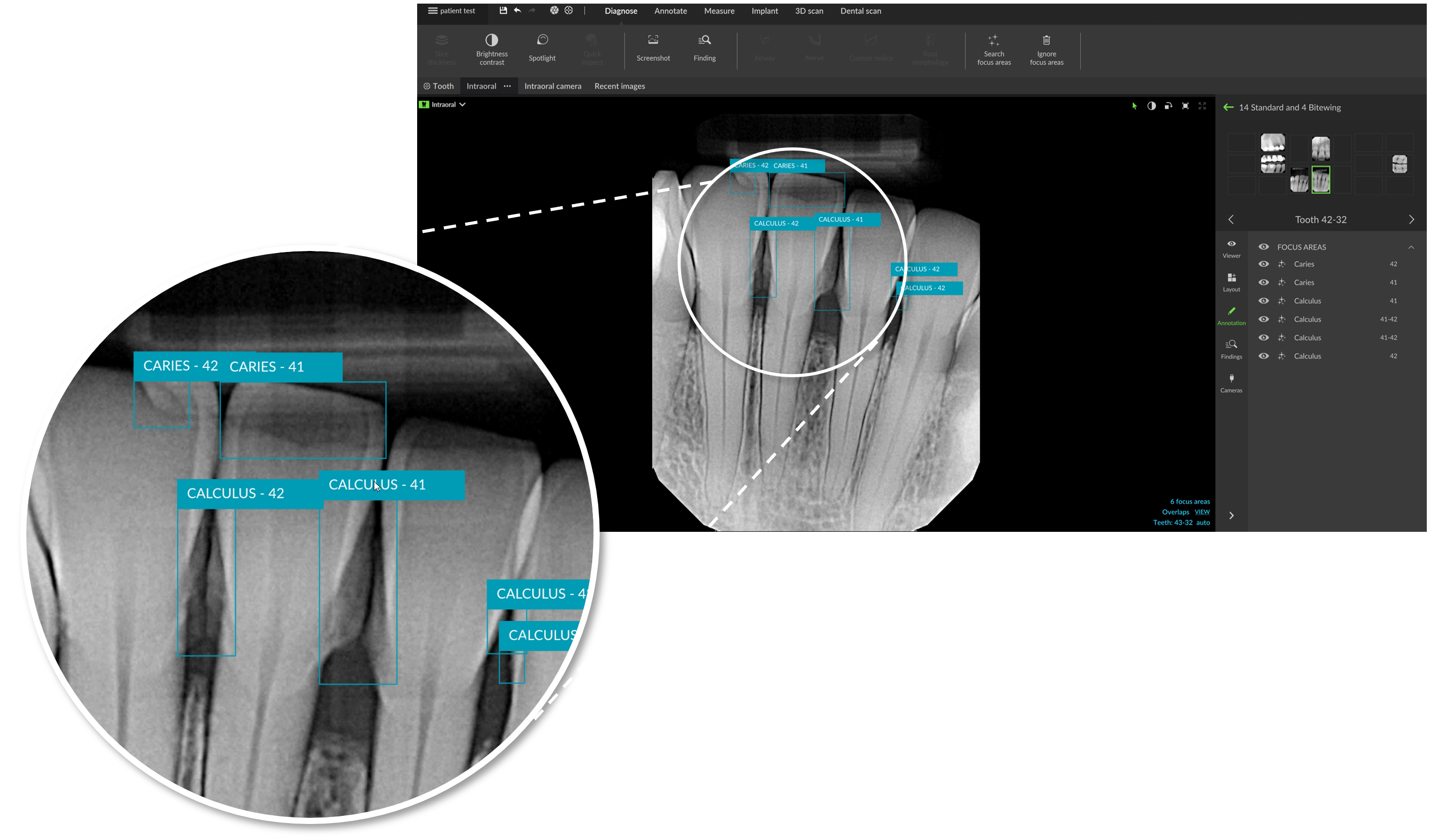

Focus areas are visualized on the intraoral images, showing the tooth number (if known), and the type of potential dental finding detected.

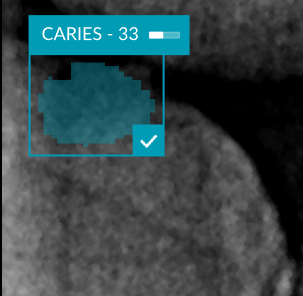

An indication of the whereabouts of the potential dental findings is visualized when hovering over the focus area.
Add or Remove a Dental Finding
After your analysis, choose either to accept the potential dental finding by left-clicking the focus area, or reject it by right-clicking the focus area.
If you choose to accept it, the focus area changes to yellow and is turned into a diagnostic finding automatically.
Manage the findings on the smart panel Findings tab.
Hide or show the focus area annotations using the visibility icons on the smart panel Visibility tab.
Note
Turn to the Tools preferences in the Clinic module to set which focus areas will be shown by default.
