Image Filters

Multiple filters can be selected. On the SmartPanel, select the Viewer visibility icon tab.

Note

To set default filters or custom gamma filter values for a certain image type, see Image settings.

To apply filters:

In the Image Filters group, click the filter(s) to be applied to the image data.

To hide all applied filters at once in order to view the original image, click  next to Image filters.

Note

Additionally, use the shortcut [E] to apply or undo the Crisp filter.

Click the down arrow down arrow below the image filter and use the slider to set the filter percentage, if needed.

Note

Click  to restore the default value.

Click outside the menu to hide the filter percentage slider.

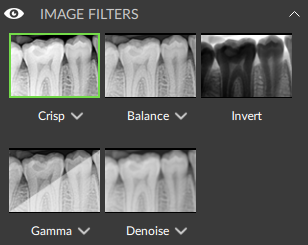

image filters

Related Training Videos

Image Filters
