Index Lines on Reslices

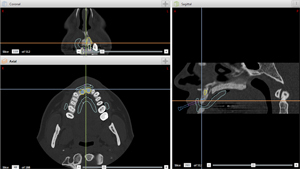

The relative relationship between the different reslice views is indicated by the colors of the index lines (dashed or full lines across the view). When moving a slice to a new position, the index lines are updated and show the current position in the data set. The lines are drawn in a color matching the color of the corresponding view.

afbeelding aanpassen?

Note

Full index lines can be repositioned by dragging. Dashed index lines cannot be moved.
